MACHINING

MANUFACTURE ORGANIZATION

WORK IN 3 SHIFTS

MULTI-MACHINE CELLS (Organization Optimized)

ERGONOMICS SYSTEMS (Focus on Productivity): Weightlessness manipulators and Automatic loading systems.

ADVANCED TECHNOLOGY MACHINERY

5-AXIS TECHNOLOGY

MULTITASK MACHINES

PALLET POOL SYSTEM (Multi-Pallet / 6 Pallets)

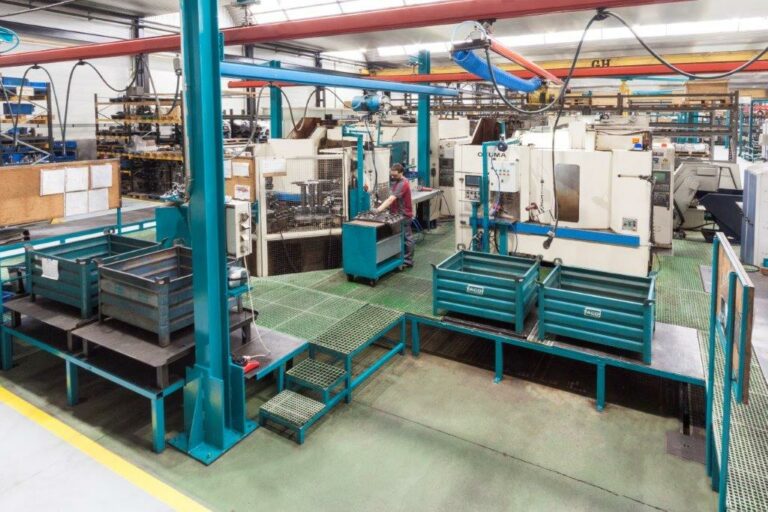

HORIZONTAL CENTER

GENERAL SPECIFICATIONS

Horizontal Centers with 3 and 4 axis in continous (Axis-B 0,001º).

Tables of 500, 630 and 800 mm. Crossed of up to 1400 mm. X-Y Range up to 1400 x 1250mm.

Machine Systems focus on a flexible production of middle runs as for example: multipool automatic system, turning function, Renishaw sounding line.

Automotive Machines Technology.

MACHINES LIST

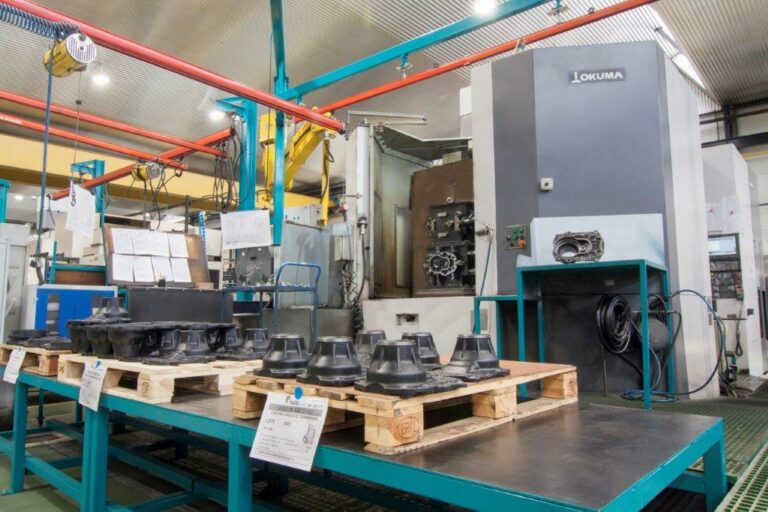

OKUMA MA-80-HB

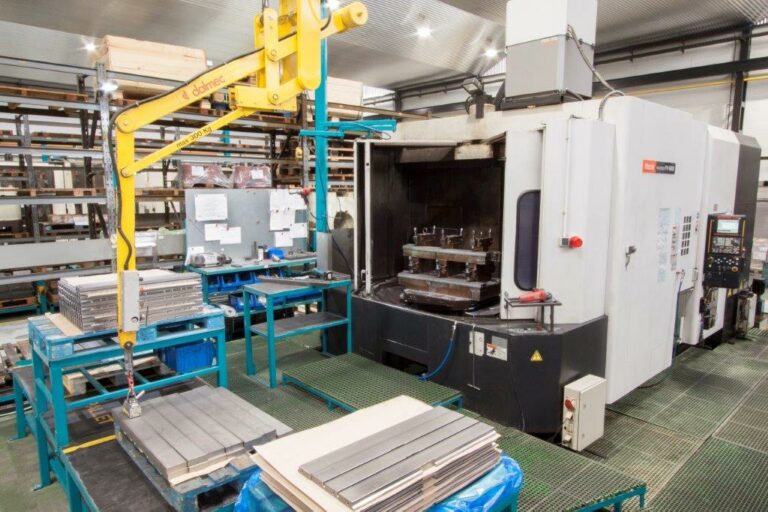

MAZAK FH8800

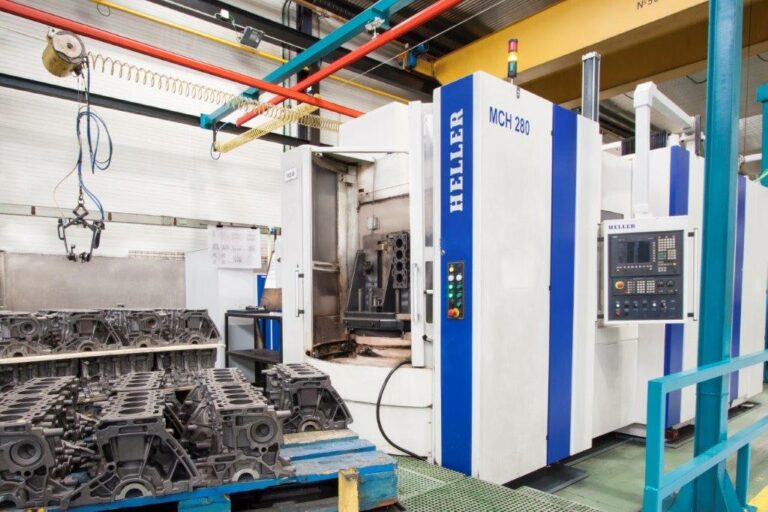

HELLER MCH280

OKUMA MA-50-HB (Pallets)

OKUMA MX-50-HB









VERTICAL CENTER

GENERAL SPECIFICATIONS

Vertical Centers with 3, 4 and 5 axis in continous (Power Chuck and Axis-B with thousand accuracy).

Main configuartion of fix table and mobile column that allows us a flexible process to achieve the best productivity.

Machining Area for parts from 720 x 600 (mm) to 6000 x 1000 (mm).





MACHINES LIST

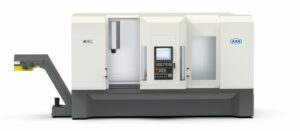

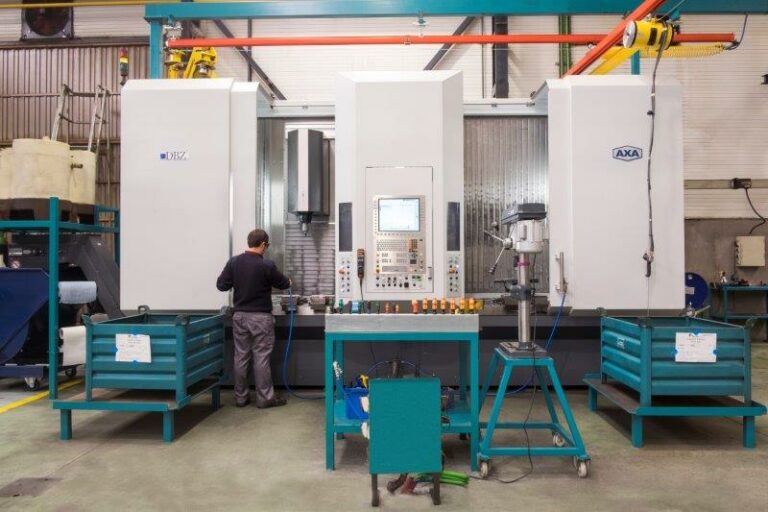

AXA-DBZ2

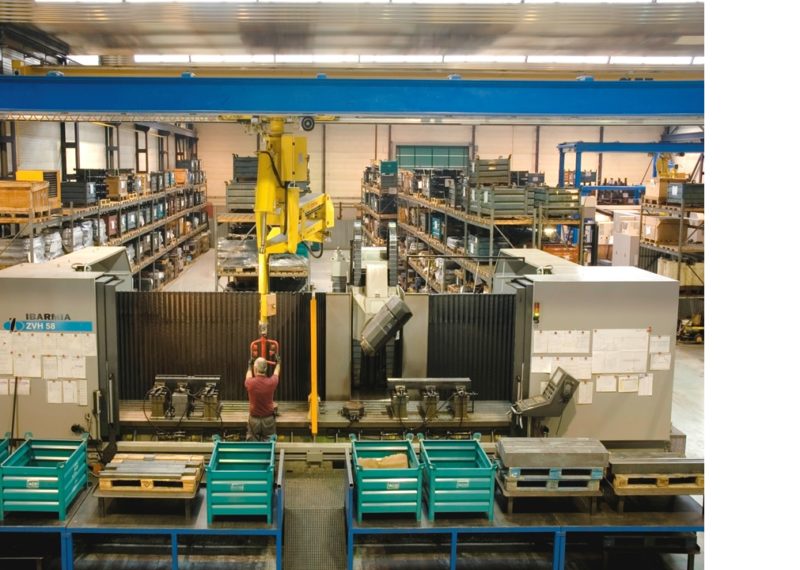

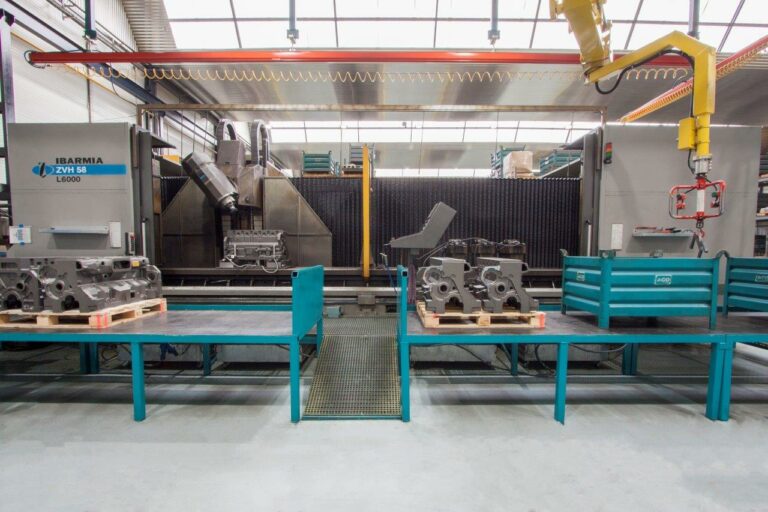

IBARMIA ZVH-58 (Eje/B)

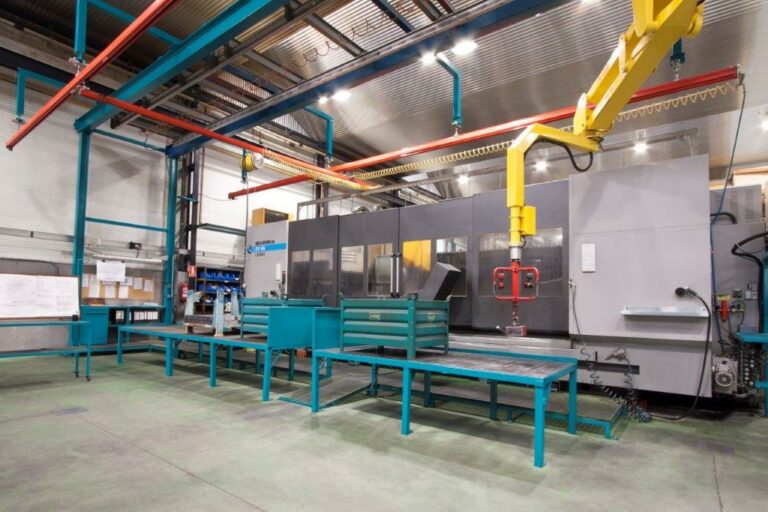

IBARMIA ZV-55

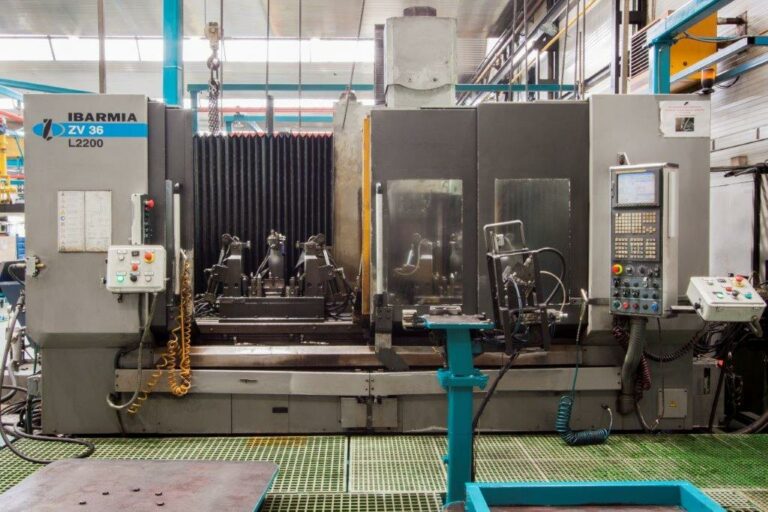

IBARMIA ZV-36

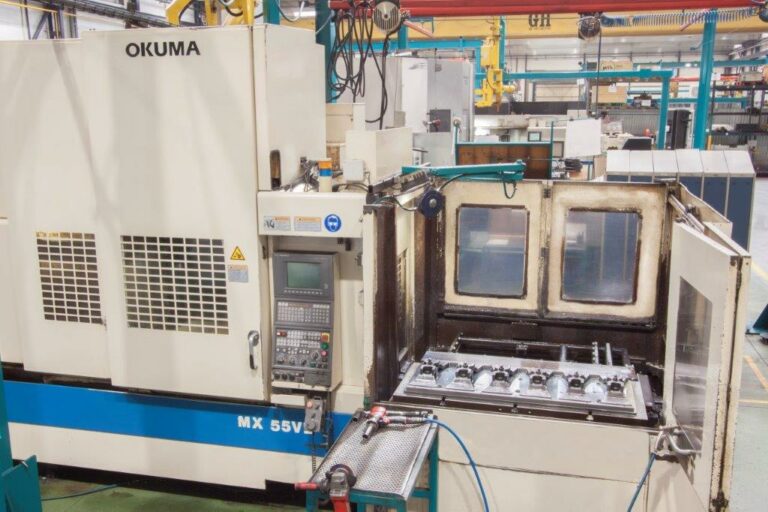

OKUMA MX-55-VB

MORI SEIKI M-300





LATHE AND MULTITASK MACHINES

GENERAL SPECIFICATIONS

Multitask machines up to 9 controlled axis with 5-axis continous machining capacity.

Turning Capacity from small parts from Ø720 (mm) y 2100 (mm) de Longitud.

Machine Configurations with 2 Spindles, 2 motorized turrets and double jaw in order to achieve the maximum productivity.

Machine Systems focus on a flexible production of middle runs as for example: automatic loading of material in bar system (internal diameter up to Ø70), Hobbing Function to machining Gears, Renishaw sounding line.

MACHINES LIST

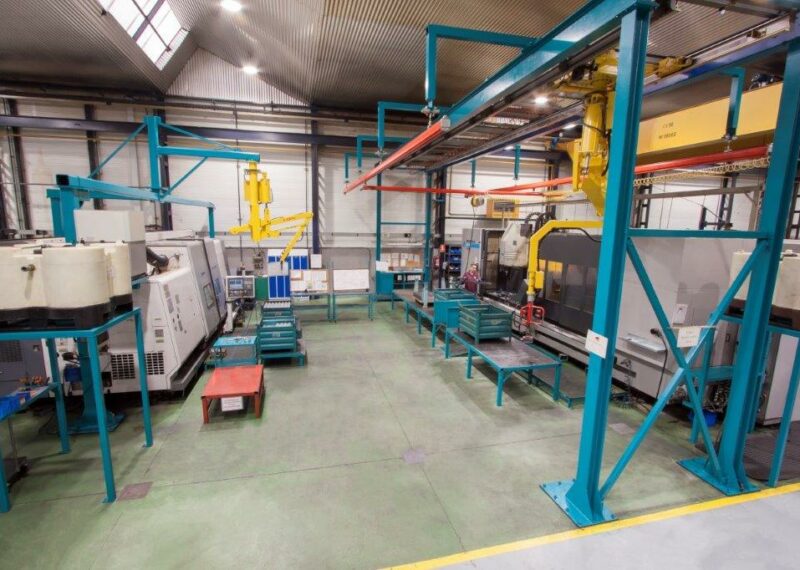

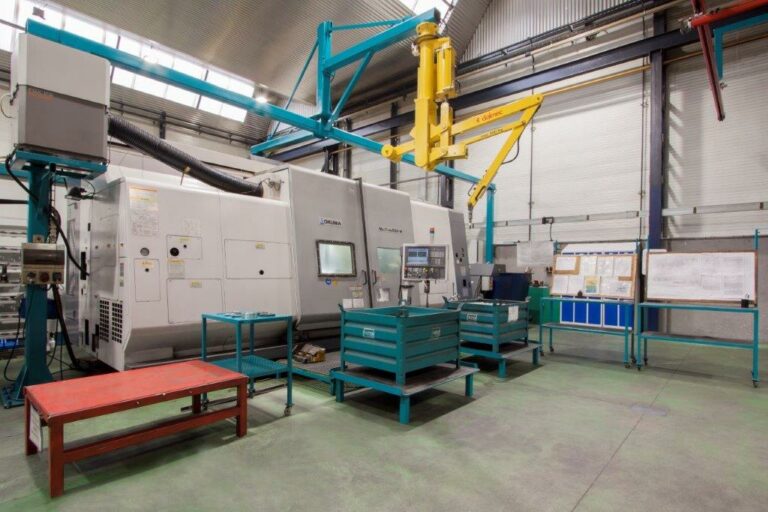

OKUMA MAQTURN-550

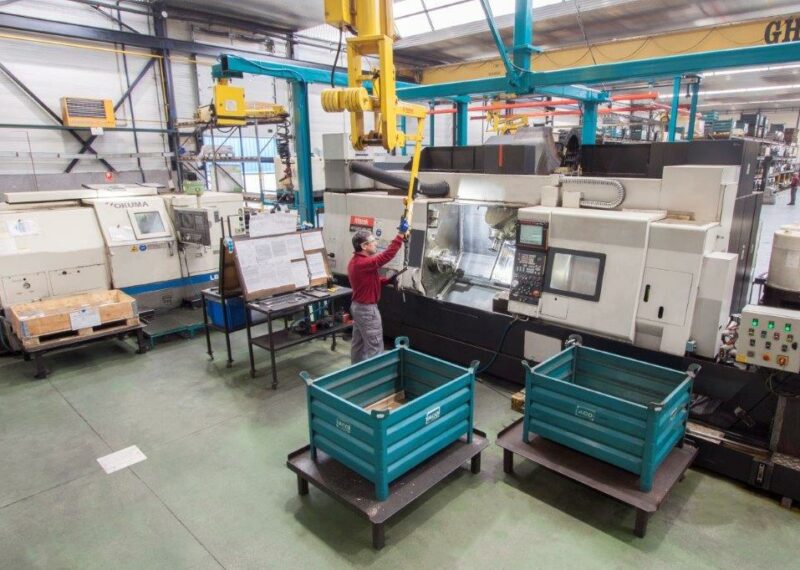

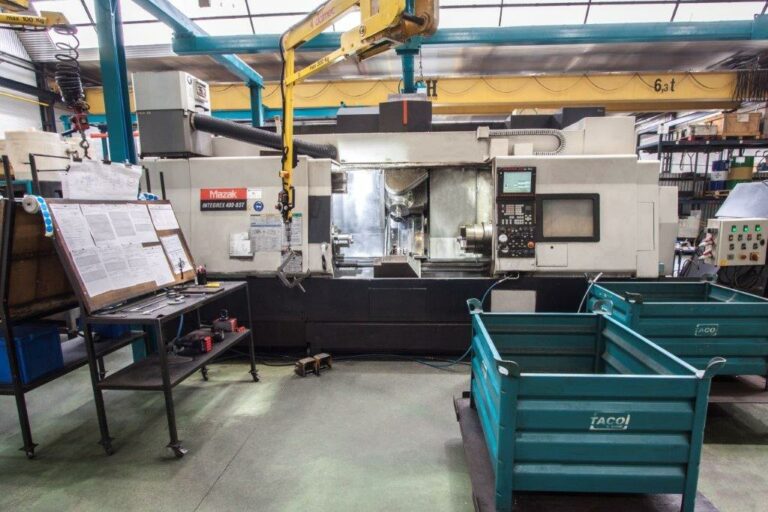

MAZAK INTEGREX-400

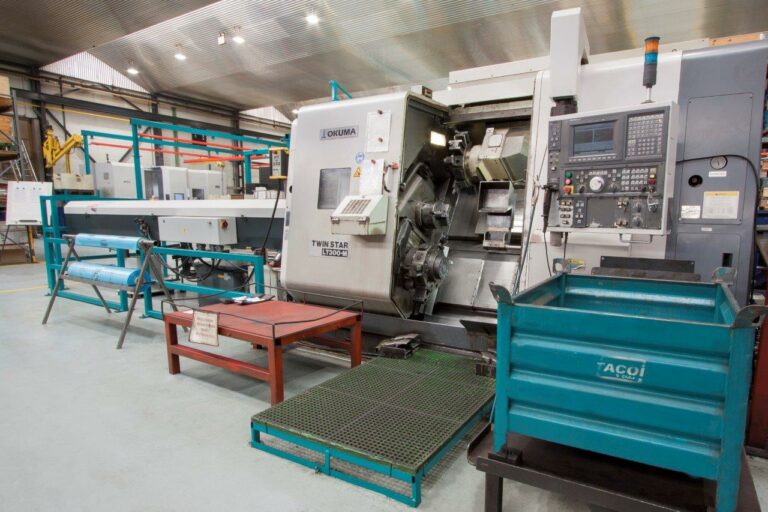

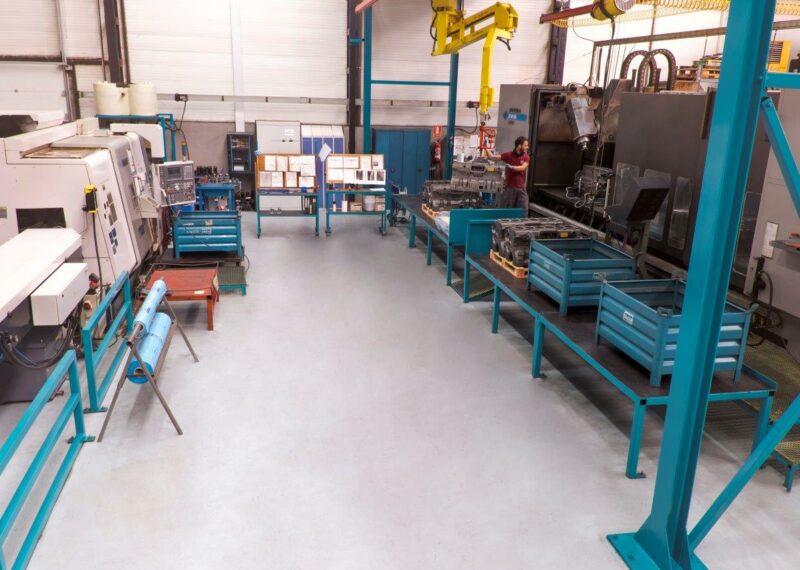

OKUMA LT-300 (Avanzabarras 4.5metros)

OKUMA LB-300

OKUMA LB-25

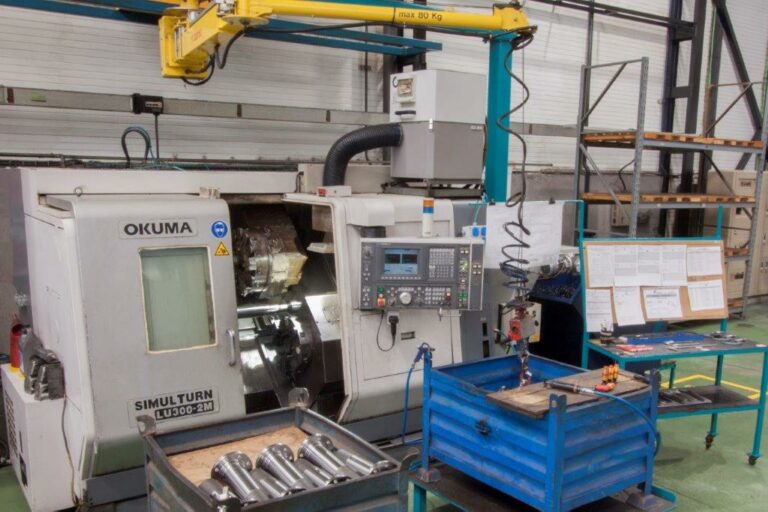

OKUMA LU-300

MORI SEIKI SL-25
